Dental NSK pana air high speed handpiece contra/straight low speed
handpiece kit students handpiece kit
Features:
Single Water Spray High Speed Dental Handpiece , Straight Nsk Low
Speed Handpiece
High speed handpiece Compatible NSK PANA Air Style
2-hole/4-hole standard wrench type handpiece
Single water spray
It has unique appearance design and fluent outline.
Smooth as silk, it has excellent texture.
With people-friendly design, easy for operation.
With best quality cartridge, easier for cleaning.
With high-speed turbine rotation, it has better performances.
Chucking power of chucking needle is 20N-45N.
It is noise-free and stable.
Applicable Bur: 1.6mm and should be conformed to ISO standard.
Idling speed of handpiece should be no less than 370,000 rotations
under working air pressure of 25-30 pressure atmosphere.
Special for operations such as clamping high-speed dentistry
machine needle to drill and grind teeth in department of
stomatology, it is more professional.
It is only for people who have dentistry medical qualification.
Specification:
DESCRIPTION
Standard Wrench type, high speed handpiece, single water spray 2
hole
NEEDLE CHANGE TYPE
Wrench Type
AIR PRESSURE AT THE BACK END OF HP
206~231 KPa (2.1~2.35 kgf/cm2)
AIR PRESSURE AT THE GAUGE IN THE DENTAL UNIT
240-294 KPa (2.45-3.0 kgf/cm2)
WATER PRESSURE
198Kpa (2 kg)
ROTATION SPEED
370,000-420,000 rpm
HEAD HIGHT
13.14 mm
HEAD DIAMETER
φ12.5 mm
BUR APPLICABLE
φ1.59mm~φ1.6mm×21mm~23mm (diameter×length)
NOISE
≤70dB
Functions and Characteristics:
Self-illuminated, just a little air can generate sufficient power,
superior brightness.
Can be used without connecting circuit
Wrench type
Opening cartridge
Triple water sprays
135°C Autoclavable
Contra angle handpiece
Low Speed 22,000-27,000 rpm.
The shank of the instrument mounted therein is 2.35 mm
Fastening of the instruments with a turning latch
Autoclavable 135°
For any lab or E-type motors
Straight Nosecone
Working pressure: 0.3MPa (2-hole);
0.25MPa (2-hole/4hole) (Measure meter is installed at the end of
air motor to measure the air pressure).
Revolution: about 22000-27000r/min (adjustable between clockwise or
anticlockwise)
Noise: ≤68dB
Air consumption: about 56L/mi
Ratio: 1:1
Max speed of contra angle: 25000rpm/min.
Air Mortor EX-203
Supply air pressure: 245-392KPa (2.5-4kgf/CM2)
1:1 Direct Drive
Borden 2 holes/4 hole
Max speed 20,000 min-1
Warranty:
- Long Life-Span
- One Year Manufacturer Warranty

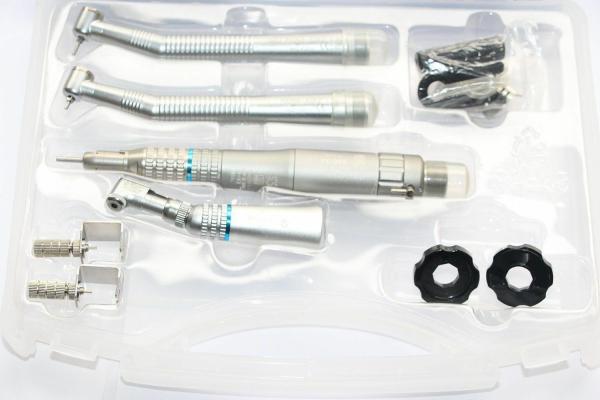

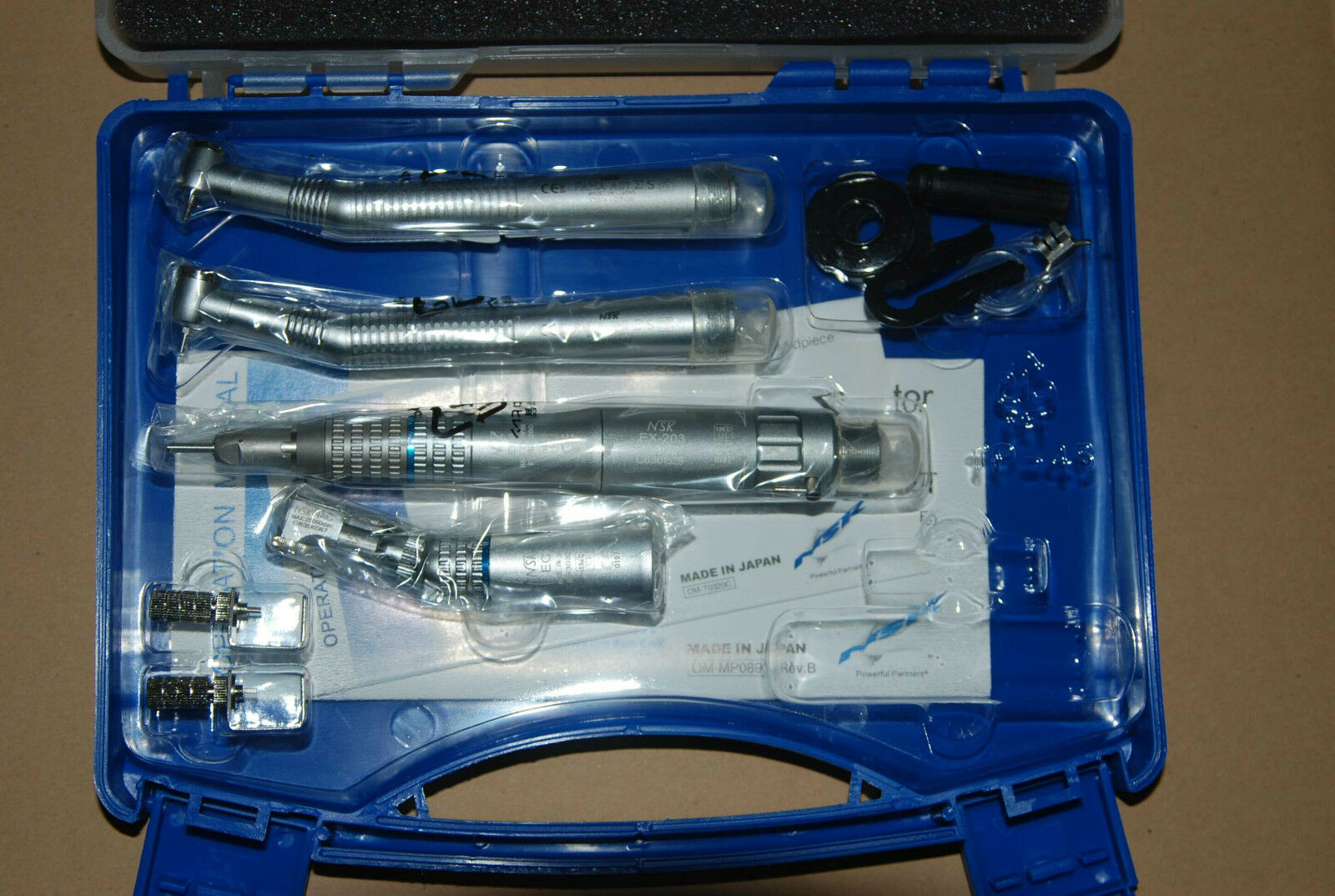

Packing list:
2 x Dental high speed handpiece 2hole/4hole
1 x E-type air motor EX-203 2-Hole/4-Hole
1 x Straight nose cone
1 x Contra Angle handpiece
1 x English manual
